Haskell at Work

• “Haskell at Work” screencasts
  • Centered around code editor
  • Fast-paced
  • No webcam overlay or effects
• My workflow
  • Write a detailed script
  • Record video separately
  • Record audio separately
  • Cut and join all “scenes”

Video Editors

• Free video editors (Kdenlive, OpenShot, …)
  • No good normalization and audio gate effects
  • Unsuited for my workflow
  • Written in C++
• Commerical video editors (Premiere Pro, Final Cut Pro, …)
  • Proprietary
  • Expensive
  • Unsuited for my workflow

Building a Video Editor

• I decided to build a screencast video editor
  • Tailored to my workflow
  • Minimal, do one thing well
• I decided write it in Haskell
  • Didn’t want to write an Electron app
  • Settled on GTK+
• Dog-fooding some of my own libraries

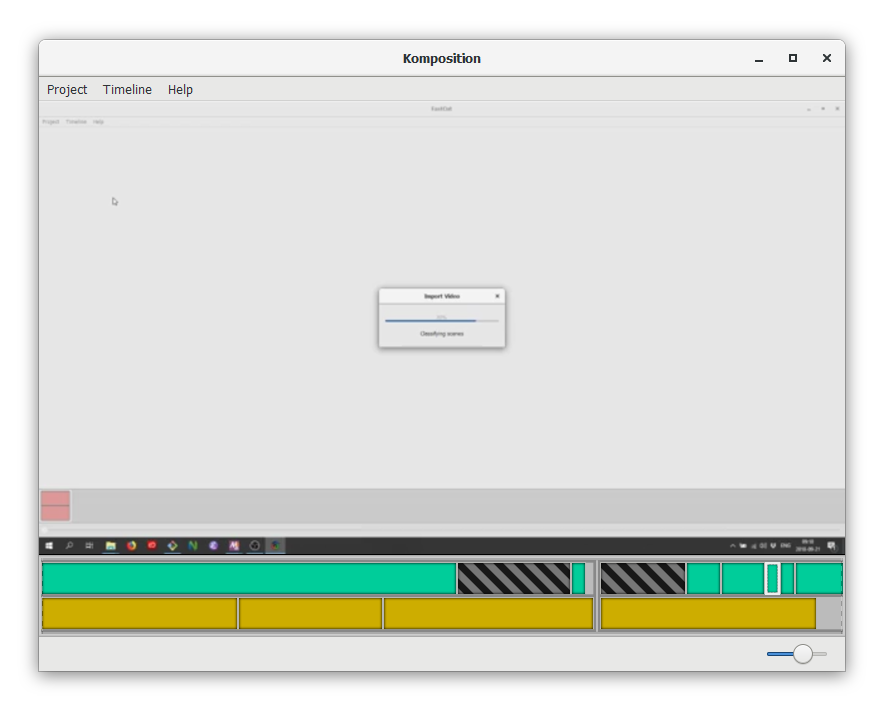

Komposition Overview

Cross-platform GUI application Modal Hierarchical timeline Sequences Parallels Clips and gaps Automatic scene classification Automatic sentence classification Keyboard-driven editing workflow

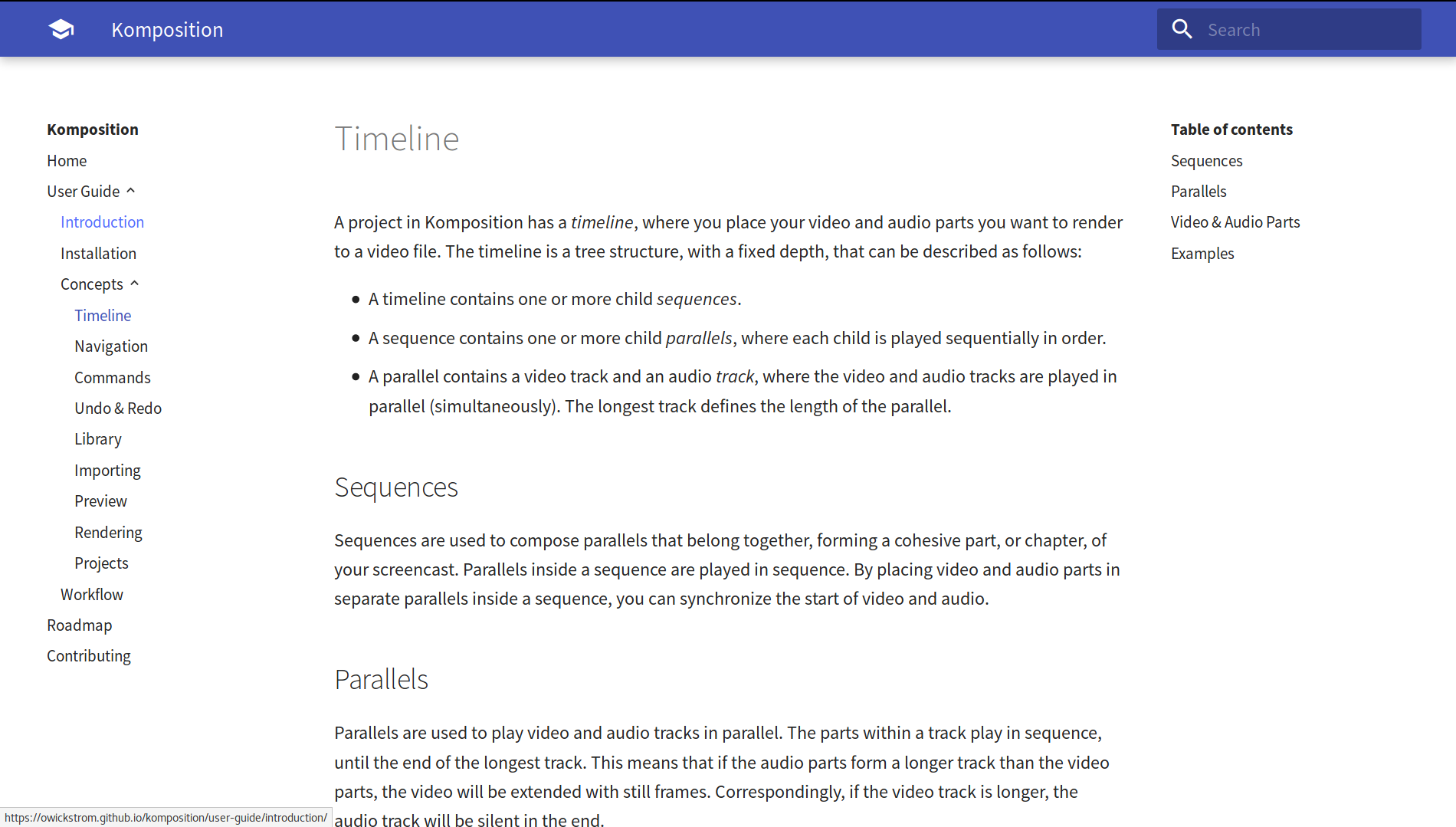

Documentation

• https://owickstrom.github.io/komposition/
  • User guide
  • Tutorial screencast

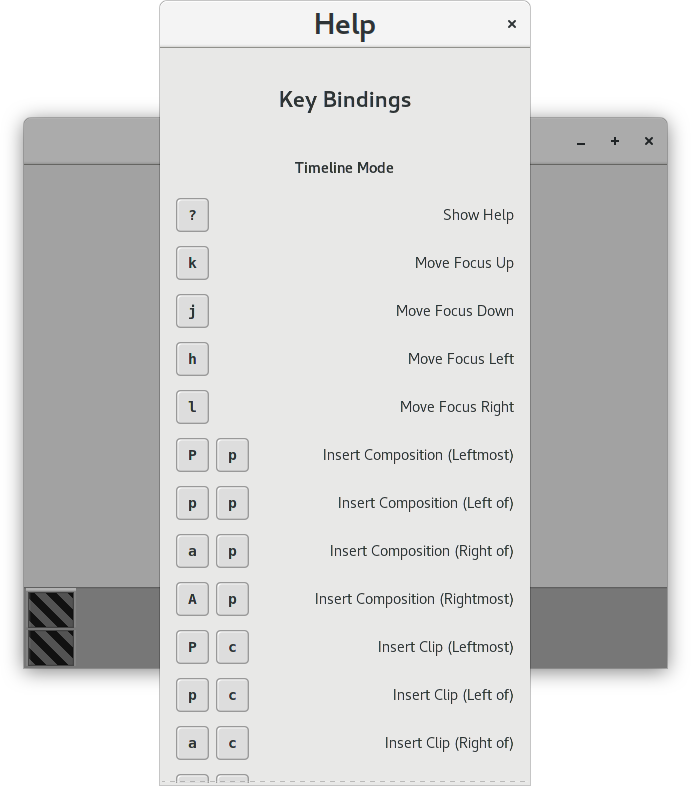

Keyboard-Driven Editing

Vim-like bindings Corresponding menu items Some mouse support Help dialog showing current mode’s key bindings

Clips

Video Still Frames

Adding Gaps

Sequences

Timeline

Striving for Purely Functional

• Pure functions and data structures in core domain
  • Timeline
  • Focus
  • Commands
  • Event handling
  • Key bindings
  • Parts of video classification
• Impure parts:
  • Audio and video import
  • Sentence classification
  • Preview frame rendering
  • Main application control flow

GTK+

• Haskell bindings from gi-gtk
• Regular GTK+ was too painful
  • Imperative
  • Callback-oriented
  • Everything in IO, no explicit model
• Started gi-gtk-declarative
  • Declarative using data structures
  • VDOM-like diffing
  • Event handling based on pure functions and values
  • Custom widgets
• Imperative gi-gtk where needed

Type-Indexed State Machines

• Using motor and row-types for typed state machines:

  start
    :: Name n
    -> KeyMaps
    -> Actions m '[ n !+ State m WelcomeScreenMode] r ()

  returnToTimeline
    :: ReturnsToTimeline mode
    => Name n
    -> TimelineModel
    -> Actions m '[ n := State m mode !--> State m TimelineMode] r ()

• Most complicated aspect of the codebase

• Currently being rewritten

Singleton Pattern

data Mode
  = WelcomeScreenMode
  | TimelineMode
  | LibraryMode
  | ImportMode

data SMode m where
  SWelcomeScreenMode :: SMode WelcomeScreenMode
  STimelineMode      :: SMode TimelineMode
  SLibraryMode       :: SMode LibraryMode
  SImportMode        :: SMode ImportMode

Using Singletons

data Command (mode :: Mode) where
  Cancel       :: Command mode
  Help         :: Command mode
  FocusCommand :: FocusCommand -> Command TimelineMode
  JumpFocus    :: Focus SequenceFocusType -> Command TimelineMode
  -- ...

keymaps :: SMode m -> KeyMap (Command m)
keymaps =
  \case
    SWelcomeScreenMode ->
      [ ([KeyChar 'q'], Mapping Cancel)
      , ([KeyEscape], Mapping Cancel)
      , ([KeyChar '?'], Mapping Help)
      ]
    -- ...

Automatic Scene Classification

• Creates a producer of frames

  readVideoFile :: MonadIO m => FilePath -> Producer (Timed Frame) m ()

• Custom algorithm for classification

  classifyMovement
      :: Monad m
      => Time -- ^ Minimum segment duration
      -> Producer (Timed RGB8Frame) m ()
      -> Producer (Classified (Timed RGB8Frame)) m ()

  classifyMovingScenes ::
       Monad m
    => Duration -- ^ Full length of video
    -> Producer (Classified (Timed RGB8Frame)) m ()
    -> Producer ProgressUpdate m [TimeSpan]

Automatic Sentence Classification

• Currently using sox
  • Normalization
  • Noise gate
  • Auto-splitting by silence
• Creates segment audio files on disk (can’t extract timespans)

Rendering

• Flattening timeline
  • Conversion from hierarchical timeline to a flat representation
  • Pads gaps and empty parts with still frames
• Flat representation is converted to a FFmpeg command
  • Data types for FFmpeg CLI syntax
  • Common flags
  • Filter graph

Preview

• Proxy media for performance
• Same FFmpeg backend as when rendering
  • Output is a streaming HTTP server
  • Not ideal, would like to use a named pipe or domain socket
• GStreamer widget
  • Consumes the HTTP stream
  • Embedded in the GTK+ user interface
• Unreliable
• Currently doesn’t work on individual clips and gaps

Color-Tinting Video Classifier

• Tints the original video with red/green based on classification
• Easier to test classifier on real recordings

Property-Based Testing

• Timeline commands and movement
  • Generates sequences of commands
  • Applies all commands
  • Resulting focus should always be valid
• Video scene classification
  • Generates known test scenes
  • Translates to real frame data
  • Runs classifier, compares to known test scenes
• Flattening of hierchical timeline
• Roundtrip properties of FFmpeg format printers and parsers

Example-Based Testing

• Commands
• Navigation
• FFmpeg syntax printing

haskell-gi

• Bindings for GTK+, GStreamer, and more
  • gi-gobject
  • gi-glib
  • gi-gst
  • gi-gtk
  • gi-gdk
  • gi-gdkpixbuf
  • gi-pango
• Extended with gi-gtk-declarative

massiv & massiv-io

• Used in video classifier
• Parallel comparison of pixel arrays
• No-copy conversion from JuicyPixels frames to massiv arrays
• Lower-resolution proxy media helps with performance

Pipes

• Streaming frame reader and writer around ffmpeg-light

• IO operations with streaming progress notifications

  importVideoFileAutoSplit
    :: (MonadIO m, MonadSafe m)
    => VideoSettings
    -> FilePath
    -> FilePath
    -> Producer ProgressUpdate m [VideoAsset]

• pipes-safe for handling resources

• pipes-parse for StateT-based transformations

Others

• protolude
• lens
• typed-process

Retrospective

• The best parts
  • Building a useful tool
  • Haskell and GHC
  • Keeping core domain pure
  • Testing with Hedgehog
• The problematic parts
  • Video and audio codecs, containers, streaming
  • Executing external programs
  • GTK+ in Haskell
  • Dependency managment (non-Haskell dependencies)

Next Steps

• Features
  • More commands (yank, paste, join, …)
  • Preview any timeline part
  • Adjust clips
• Improvements
  • Technical debt, refactoring
  • Content-addressed project files (reuse, avoiding collision)
  • Optimized FFmpeg rendering
  • Optimized diffing (gi-gtk-declarative)
• Packaging (Debian, macOS, Windows, nixpkgs)
• … and much more

Thank You!

• Komposition: owickstrom.github.io/komposition/
• Slides: owickstrom.github.io/writing-a-screencast-video-editor-in-haskell/
• Image credits:
  • Yak by travelwayoflife - Flickr, CC BY-SA 2.0
  • Human evolution scheme by M. Garde - Self work (Original by: José-Manuel Benitos), CC BY-SA 3.0
  • Old Cogs by Emmanuel Huybrechts from Laval, Canada (Old Cogs) CC BY 2.0, via Wikimedia Commons
  • Save the skateboard!
• Thanks to @sassela for great feedback!
