Hedgehog

• Random generated inputs
• Integrated shrinking
• Great error reporting
• Concurrent test execution
• Generators as values

List Reverse with Hedgehog

prop_reverse = property $ do
  xs <- forAll $
    Gen.list
    (Range.linear 0 10)
    (Gen.int Range.linearBounded)
  reverse (reverse xs) === xs

List Sort with Hedgehog

prop_sort = property $ do
  xs <- forAll $
    Gen.list
    (Range.linear 0 10)
    (Gen.int Range.linearBounded)
  mySuperSort xs === industryStandardSort xs

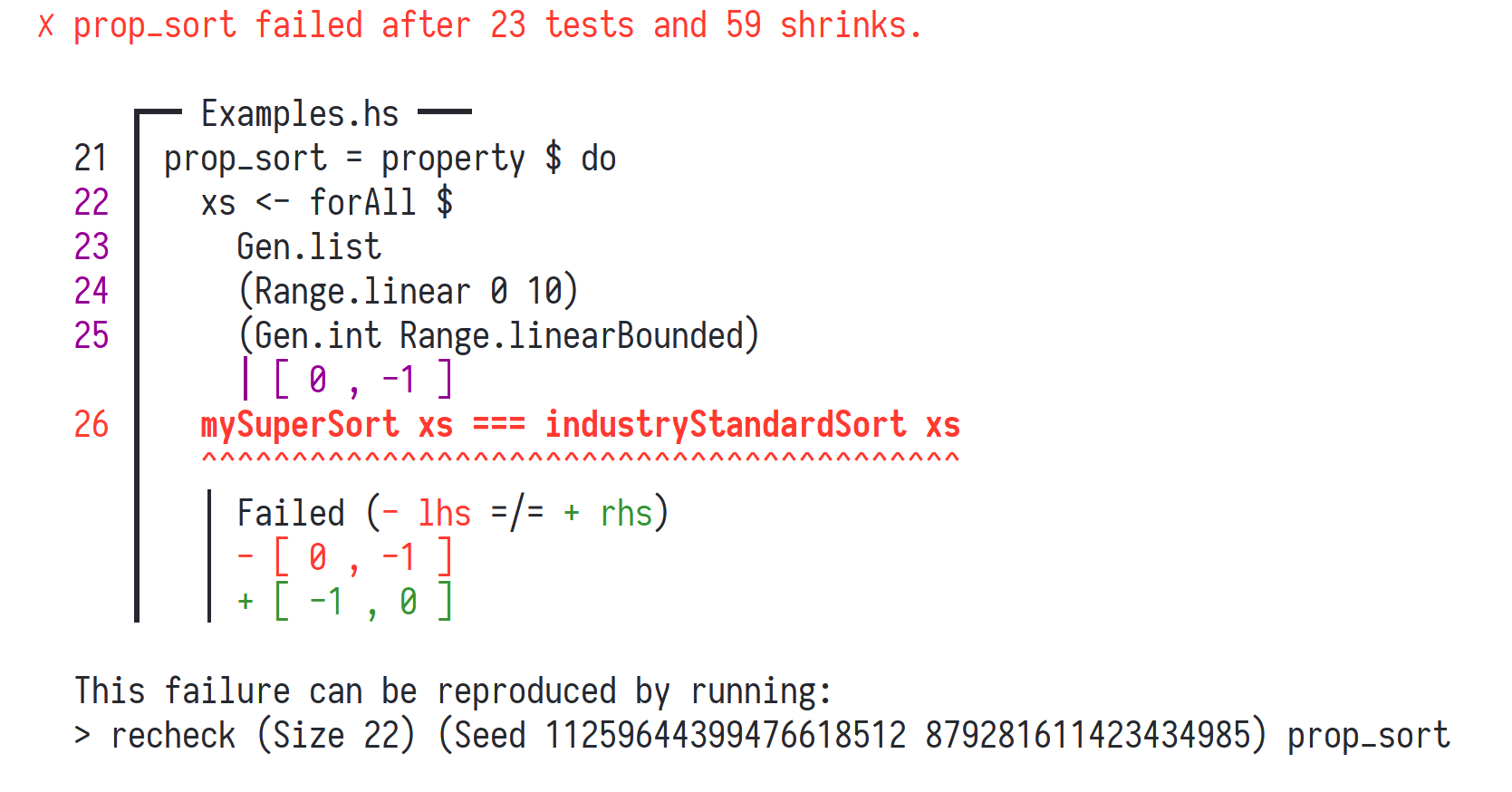

Failures

Poll

How many of you write sort algorithms in your day job?

How do I use this in my job?

• What if you’re working with:
  • Backends with databases and integrations?
  • Frontends with GUIs and user input?
  • Data pipelines and analytics?
• Hard to write properties
• Fewer examples online

Testing the “Ugly” Parts

• Not everything will be small pure functions
• Complex interactions between larger modules
• Stateful
• Side-effects

Designing for Testability

• Regular “writing testable code” guidelines apply:
  • Single responsibility
  • Determinism
  • No global side-effects
  • Low coupling between interface and implementation

Coming Up With Properties

• “Choosing properties for property-based testing” by Scott Wlaschin
  • “Different paths, same destination”
  • “There and back again”
  • “Some things never change”
  • “The more things change, the more they stay the same”
  • “Solve a smaller problem first”
  • “Hard to prove, easy to verify”
  • “The test oracle”
• Study others’ property tests
• Practice!

Other Interesting Techniques

• State-machine testing
• “Database of inputs”
  • Testing Our Ruby and Haskell Implementations Side-By-Side

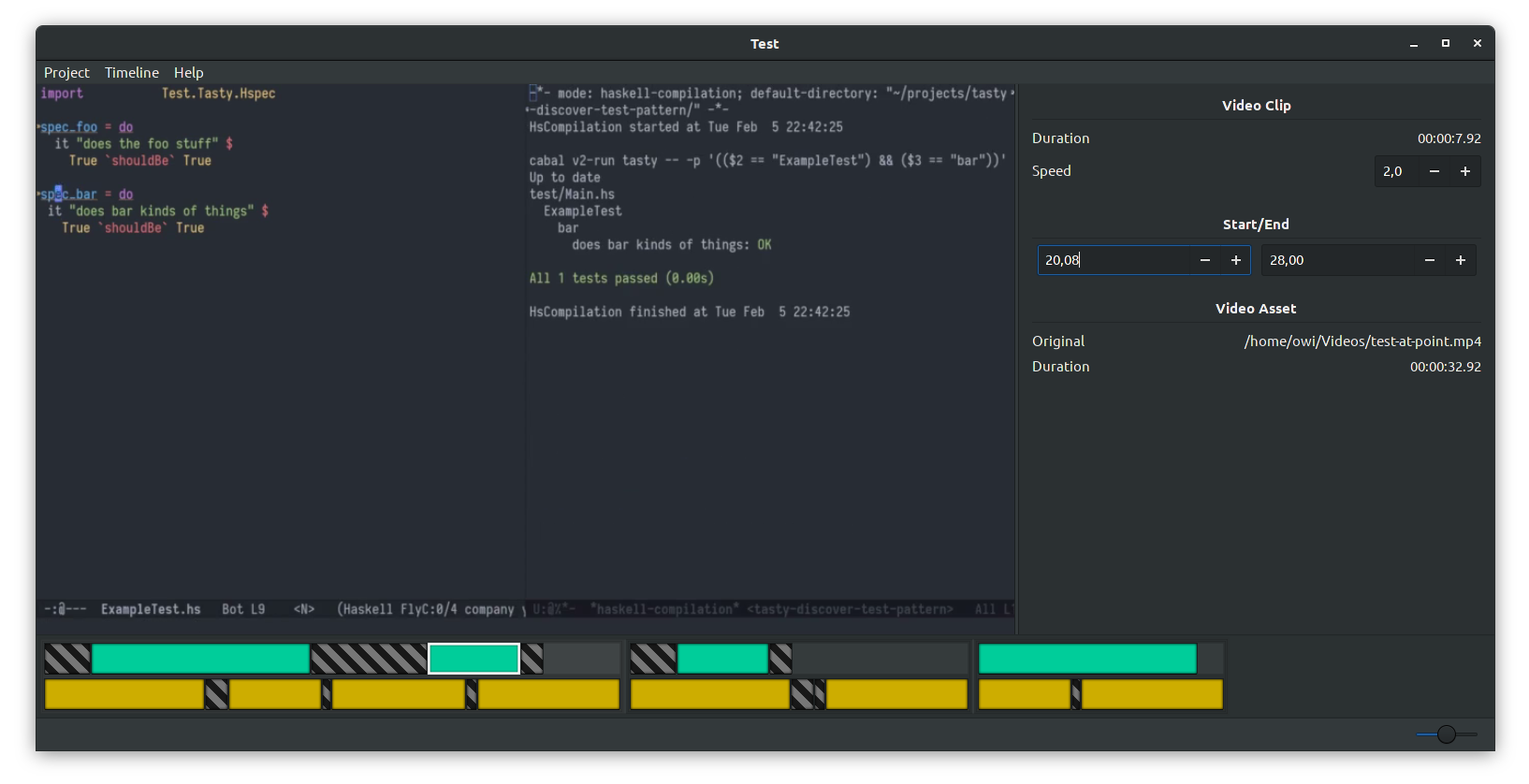

Komposition

Desktop GUI application Modal Hierarchical timeline Sequences Parallels Tracks Clips and gaps Automatic scene classification Automatic sentence classification

Complex Features

• Most complex features in Komposition
  • Focus and timeline transformations
  • Video classification
  • Rendering
  • Application logic
• Spend effort on testing those

Case Studies

1. Timeline Flattening
2. Video Scene Classification
3. Integration Tests (Undo/Redo Symmetry)

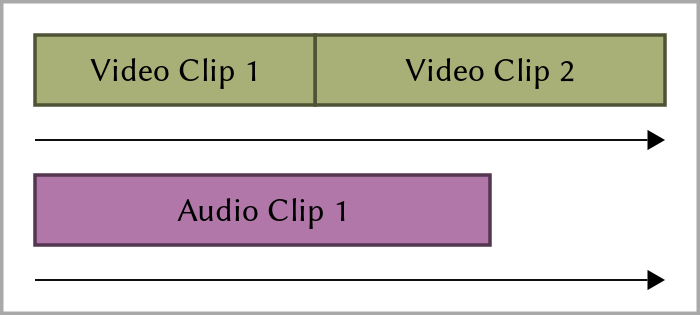

Clips

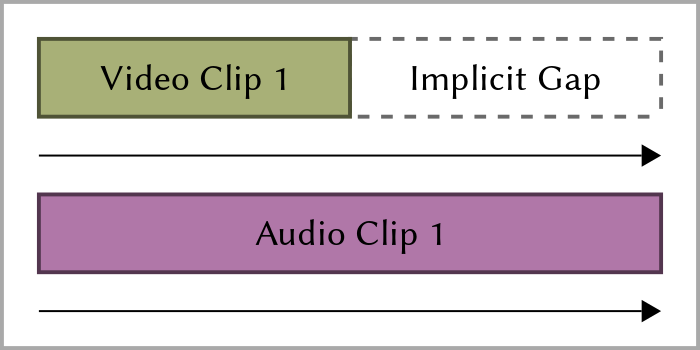

Video Still Frames

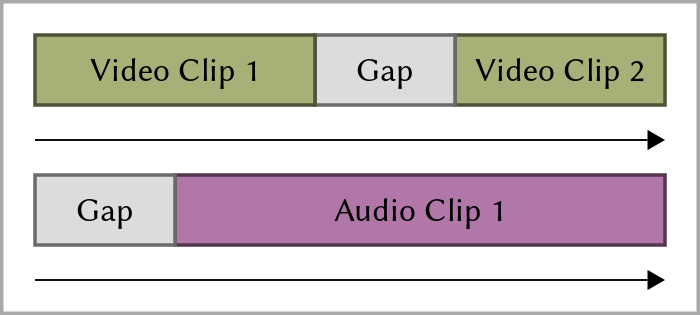

Adding Gaps

Sequences

Timeline

Timeline Flattening

• Timeline is hierarchical
  • Sequences
  • Parallels
  • Tracks
  • Clips and gaps
• FFmpeg render knows only about two flat tracks
  • Video track
  • Audio track

Timeline Flattening (Graphical)

Testing Duration

hprop_flat_timeline_has_same_duration_as_hierarchical =
  property $ do
    t <- forAll $ Gen.timeline (Range.exponential 0 20) Gen.parallelWithClips
    let Just flat = Render.flattenTimeline t
    durationOf AdjustedDuration t === durationOf AdjustedDuration flat

Testing Clip Occurence

hprop_flat_timeline_has_same_clips_as_hierarchical =
  property $ do
    t <- forAll $ Gen.timeline (Range.exponential 0 20) Gen.parallelWithClips
    let Just flat = Render.flattenTimeline t
    timelineVideoClips t === flatVideoClips flat
    timelineAudioClips t === flatAudioClips flat

More on Timeline Flattening

• Other properties
  • How video gaps are padded with still frames
  • Same flat result regardless of grouping (split/join sequences, then flatten)

Video Scene Classification

• Komposition can automatically classify “scenes”
  • Moving segment: consecutive non-equal frames
  • Still segment: at least S seconds of consecutive near-equal frames
• S is a preconfigured threshold for still segment duration
• Edge cases:
  • First segment is always a moving segment
  • Last segment may be shorter

Visualizing with Color Tinting

Testing Video Classification

• Generate high-level representation of expected output segments:
• Convert output representation to actual pixel frames:
• Run the classifier on the pixel frames
• Test properties based on:
  • the expected output representation
  • the actual classified output

Two Properties of Video Classification

1. Classified still segments must be at least S seconds long
   • Ignoring the last segment (which may be a shorter still segment)
2. Classified moving segments must have correct timespans
   • Comparing the generated expected output to the classified timespans

Testing Still Segment Lengths

hprop_classifies_still_segments_of_min_length = property $ do

  -- 1. Generate a minimum still segment length/duration
  minStillSegmentFrames <- forAll $ Gen.int (Range.linear 2 (2 * frameRate))
  let minStillSegmentTime = frameCountDuration minStillSegmentFrames

  -- 2. Generate output segments
  segments <- forAll $
    genSegments (Range.linear 1 10)
                (Range.linear 1
                              (minStillSegmentFrames * 2))
                (Range.linear minStillSegmentFrames
                              (minStillSegmentFrames * 2))
                resolution

Testing Still Segment Lengths (cont.)

  ...

  -- 3. Convert test segments to actual pixel frames
  let pixelFrames = testSegmentsToPixelFrames segments

  -- 4. Run the classifier on the pixel frames
  let counted = classifyMovement minStillSegmentTime (Pipes.each pixelFrames)
                & Pipes.toList
                & countSegments
  ...

Testing Still Segment Lengths (cont.)

  ...

  -- 5. Sanity check
  countTestSegmentFrames segments === totalClassifiedFrames counted

  -- 6. Ignore last segment and verify all other segments
  case initMay counted of
    Just rest ->
      traverse_ (assertStillLengthAtLeast minStillSegmentTime) rest
    Nothing -> success
  where
    resolution = 10 :. 10

Success!

> :{
| hprop_classifies_still_segments_of_min_length
|   & Hedgehog.withTests 10000
|   & Hedgehog.check
| :}
  ✓ <interactive> passed 10000 tests.

Testing Moving Segment Timespans

hprop_classifies_same_scenes_as_input = property $ do

  -- 1. Generate a minimum still still segment duration
  minStillSegmentFrames <- forAll $ Gen.int (Range.linear 2 (2 * frameRate))
  let minStillSegmentTime = frameCountDuration minStillSegmentFrames

  -- 2. Generate test segments
  segments <- forAll $
    genSegments (Range.linear 1 10)
                (Range.linear 1
                              (minStillSegmentFrames * 2))
                (Range.linear minStillSegmentFrames
                              (minStillSegmentFrames * 2))
                resolution

  ...

Testing Moving Segment Timespans (cont.)

  ...

  -- 3. Convert test segments to actual pixel frames
  let pixelFrames = testSegmentsToPixelFrames segments

  -- 4. Convert expected output segments to a list of expected time spans
  --    and the full duration
  let durations = map segmentWithDuration segments
      expectedSegments = movingSceneTimeSpans durations
      fullDuration = foldMap unwrapSegment durations

  ...

Testing Moving Segment Timespans (cont.)

  ...

  -- 5. Classify movement of frames
  let classifiedFrames =
        Pipes.each pixelFrames
        & classifyMovement minStillSegmentTime
        & Pipes.toList

  -- 6. Classify moving scene time spans
  let classified =
        (Pipes.each classifiedFrames
         & classifyMovingScenes fullDuration)
        >-> Pipes.drain
        & Pipes.runEffect
        & runIdentity

  ...

Testing Moving Segment Timespans (cont.)

  ...

  -- 7. Check classified time span equivalence
  expectedSegments === classified

  where
    resolution = 10 :. 10

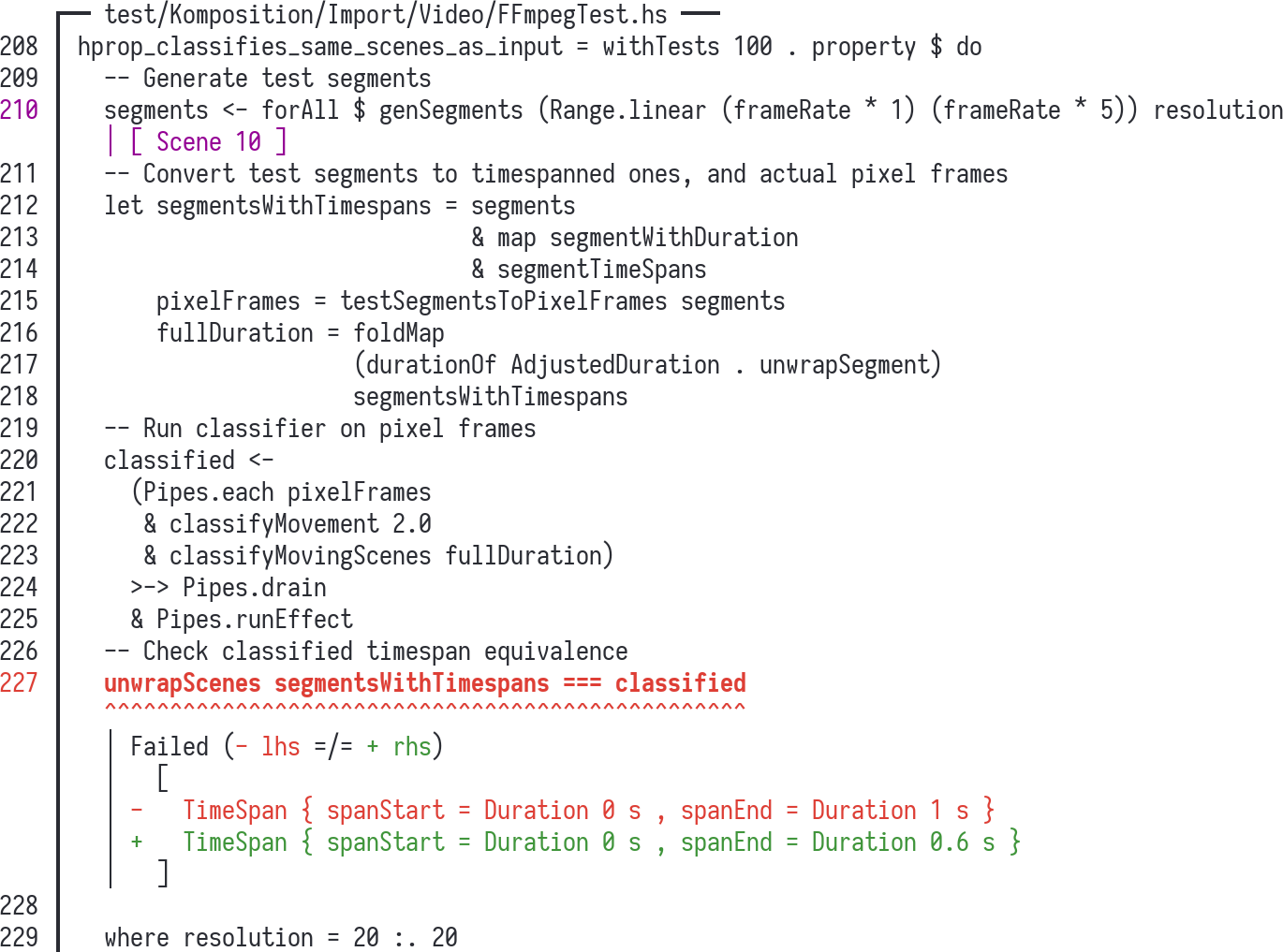

Failure!

Classifier Bugs

classifyMovement minStillSegmentTime =
  case ... of
    InStillState{..} ->
      if someDiff > minEqualTimeForStill
        then ...
        else ...
    InMovingState{..} ->
      if someOtherDiff >= minStillSegmentTime
        then ...
        else ...
  where
    minEqualTimeForStill = 0.5

Fixing Bugs

• There were multiple bugs:
  • The specificiation was wrong
  • The generators and tests had errors
  • The implementation had errors
• After fixing bugs, thousands of tests ran successfully
• Tried importing actual recorded video, had great results!

Undo/Redo Symmetry

• Undo/Redo was previously implemented as stacks of previous/future states
• Consumed gigabytes of disk space and RAM for projects with many edits
• Rewrote the implementation to only store “invertible actions”

Testing Undo

• Generate an initial state
• Generate a sequence of undoable commands
• Run all commands
• Run undo command for each original command
• Assert that we end up at the initial state

Actions are Undoable

hprop_undo_actions_are_undoable = property $ do

  -- Generate initial timeline and focus
  timelineAndFocus <- forAllWith showTimelineAndFocus $
    Gen.timelineWithFocus (Range.linear 0 10) Gen.parallel

  -- Generate initial application state
  initialState <- forAll (initializeState timelineAndFocus)

  -- Generate a sequence of undoable/redoable commands
  events <- forAll $
    Gen.list (Range.exponential 1 100) genUndoableTimelineEvent

  ...

Actions are Undoable (cont.)

  ...

  -- We begin by running 'events' on the original state
  beforeUndos <- runTimelineStubbedWithExit events initialState

  -- Then we run as many undo commands as undoable commands
  afterUndos <- runTimelineStubbedWithExit (undoEvent <$ events) beforeUndos

  -- That should result in a timeline equal to the one we at the
  -- beginning
  timelineToTree (initialState ^. currentTimeline)
    === timelineToTree (afterUndos ^. currentTimeline)

Testing Redo

• Generate an initial state
• Generate a sequence of undoable/redoable commands
• Run all commands
• Run undo and redo commands for each original command
• Assert that we end up at the state before running undos

Actions are Redoable

hprop_undo_actions_are_redoable = property $ do

  -- Generate the initial timeline and focus
  timelineAndFocus <- forAllWith showTimelineAndFocus $
    Gen.timelineWithFocus (Range.linear 0 10) Gen.parallel

  -- Generate the initial application state
  initialState <- forAll (initializeState timelineAndFocus)

  -- Generate a sequence of undoable/redoable commands
  events <- forAll $
    Gen.list (Range.exponential 1 100) genUndoableTimelineEvent

Actions are Redoable (cont.)

  -- We begin by running 'events' on the original state
  beforeUndos <- runTimelineStubbedWithExit events initialState

  -- Then we undo and redo all of them
  afterRedos  <-
    runTimelineStubbedWithExit (undoEvent <$ events) beforeUndos
    >>= runTimelineStubbedWithExit (redoEvent <$ events)

  -- That should result in a timeline equal to the one we had before
  -- starting the undos
  timelineToTree (beforeUndos ^. currentTimeline)
    === timelineToTree (afterRedos ^. currentTimeline)

Undo/Redo Test Summary

• These tests made the refactoring possible
• Founds many interim bugs
  • Off-by-one index
  • Inconsistent focus
  • Non-invertible actions
• After the tests passed: ran the GUI, it worked

Related Tests

• Focus and Timeline Consistency
  • The focus is a data structure that “points” to a part of the timeline
  • The timeline and focus must at all points be consistent
  • Approach:
    • Generate a random initial state
    • Generate a random sequence of user commands
    • Check consistency after each command
    • Run all commands until termination

Summary

• Property-based testing is not only for pure functions!
  • Effectful actions
  • Integration tests
• Process (iterative)
  • Think about the specification first
  • Think about how generators and tests should work
  • Get minimal examples of failures, fix the implementation
• Using them in Komposition:
  • Made refactoring and evolving large parts of the system tractable and safer
  • Found existing errors in my thinking, my tests, my implementation
  • It’s been a joy

References

• What is Property Based Testing? by David R. MacIver
• Experiences with QuickCheck: Testing the Hard Stuff and Staying Sane by John Hughes
• “Choosing properties for property-based testing” by Scott Wlaschin

Thank You!

• “Property-Based Testing in a Screencast Editor” series:
  • Introduction
  • Timeline Flattening
  • Video Scene Classification
• Komposition: owickstrom.github.io/komposition/
• Slides: owickstrom.github.io/property-based-testing-the-ugly-parts/
• Thanks to John Hughes for feedback
• Image credits:
  • I Have No Idea What I’m Doing
